Fanicom System 3D glasses adapter rev-en

[krzysiobal]

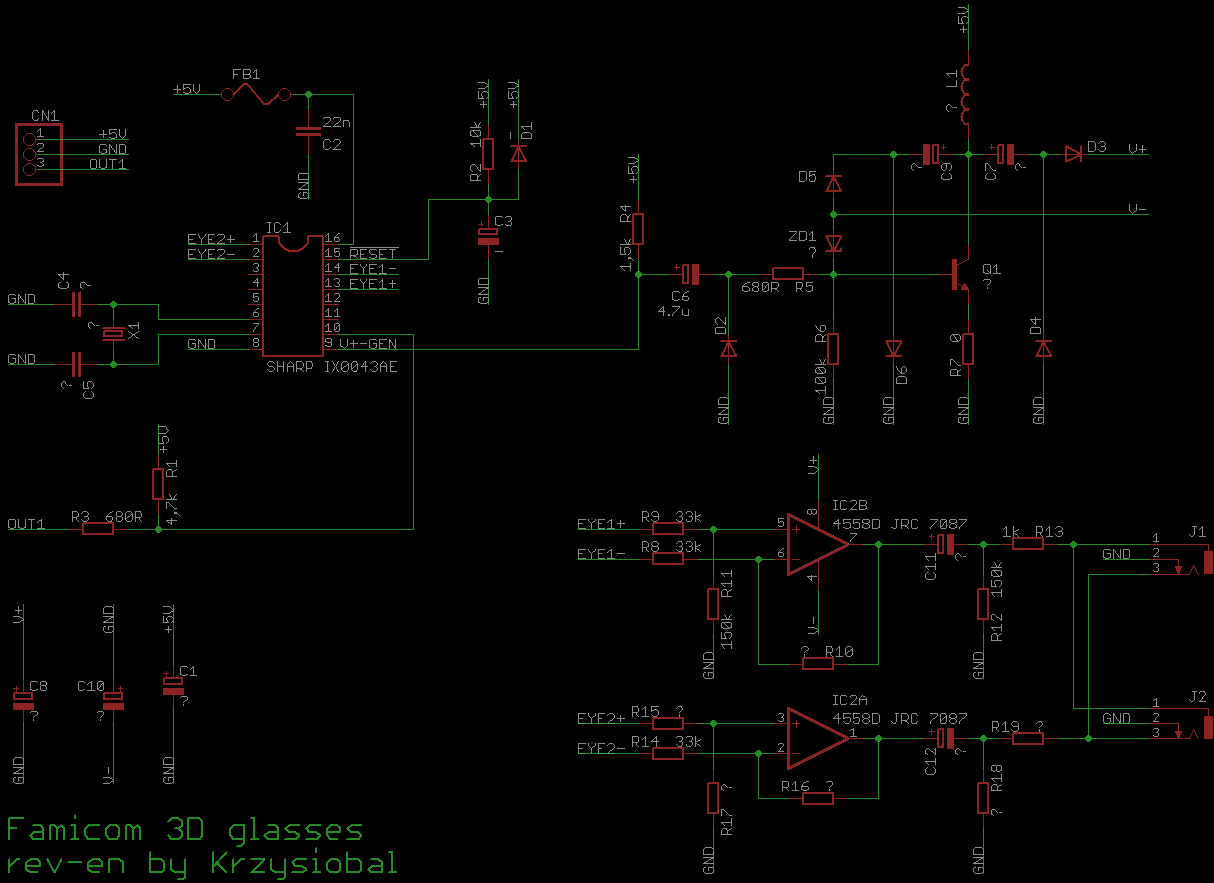

Basing on the photos from famicomworld:

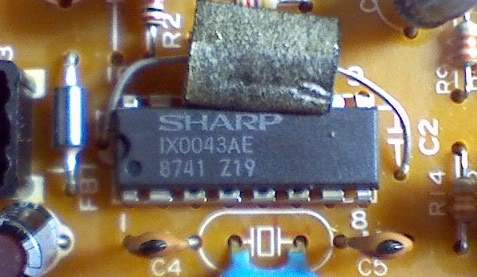

There is 455 op-amp and proprietary SHARP IX0043AE DIL16 chip that:
* generates positive & negative volage for the opamp,
* basing on the data that comes from OUT1 pin, drives (via opamp) glasses for left/right eye.

Is the protocol describing data transmitted via OUT1 pin described?

Code: Select all

          .---v---.
 EYE2+ <- |01   16| -- +5V
 EYE2- <- |02   15| <- /RESET
          |03   14| -> EYE1-
          |04   13| -> EYE1+
          |05   12|
 XTAL1 -- |06   11|
 XTAL2 -- |07   10|
   GND -- |08   09| -> V+-GEN
          '-------'

[lidnariq]

As far as I know, it's literally just high = one eye / low = the other.
